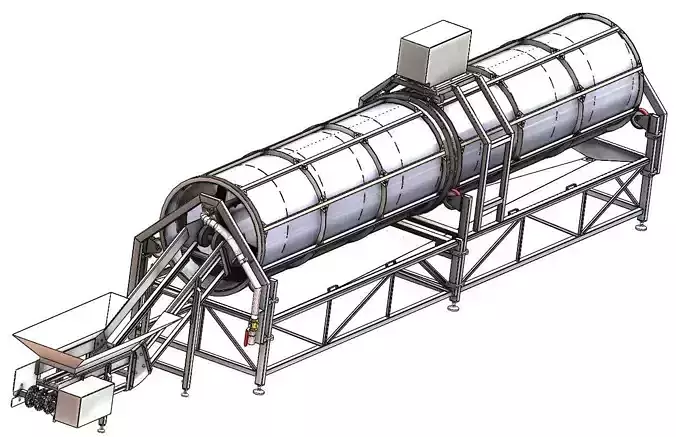

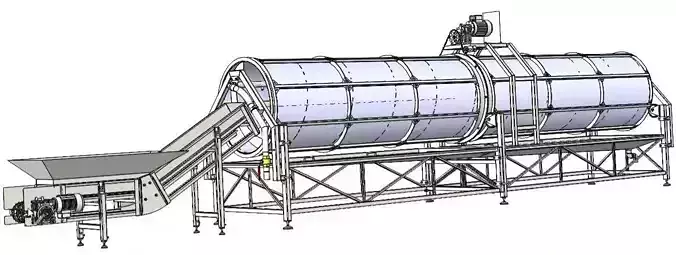

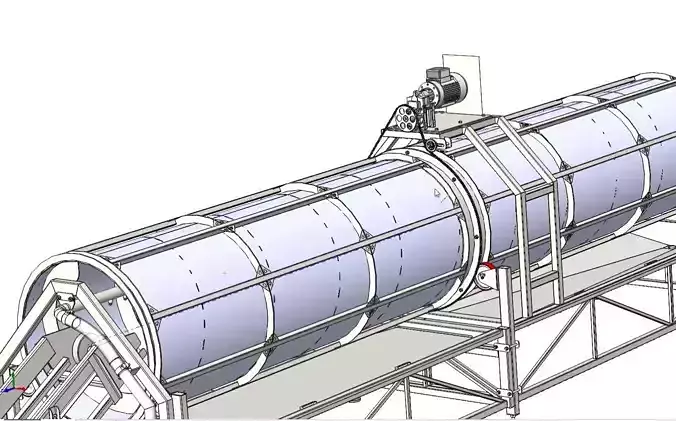

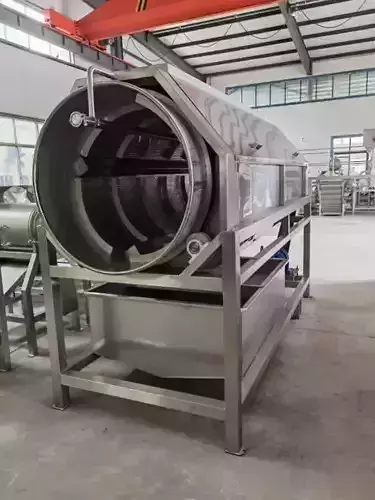

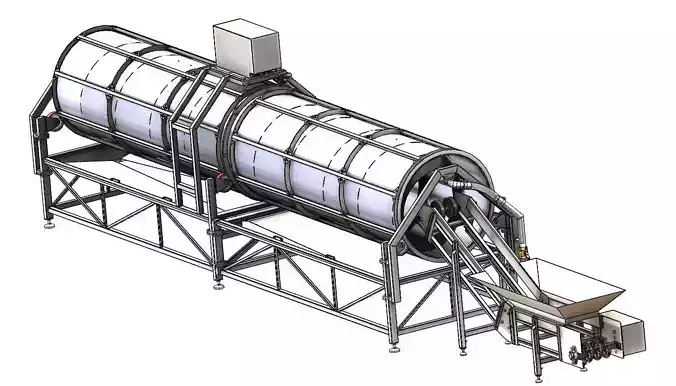

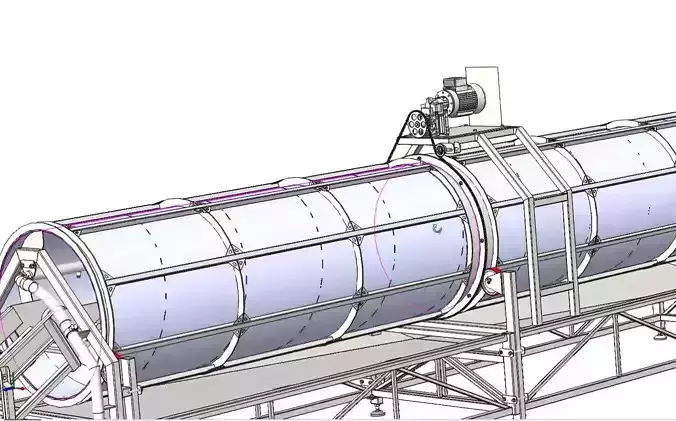

Rotary Vegetable and Fruit Drum Washing Machine 3D model

Industrial Drum Washing Machine 3D CAD model designed for continuous cleaning of vegetables, fruits, and agricultural raw materials using a rotating drum and brush mechanism. The machine utilizes rotary drum motion, internal spiral guide plates, and high-pressure water spraying to effectively remove mud, sand, and impurities from product surfaces.During operation, the transmission system drives the cleaning drum and main shaft, allowing the material to tumble and rotate while brushes and water jets clean the surface. The spiral guide inside the drum gradually pushes the material from the feed inlet to the discharge outlet, enabling continuous washing and automatic discharge.The system supports direct tap water connection or high-pressure pump water supply, making it suitable for continuous food processing lines.Key Features• Rotary drum cleaning mechanism• Internal spiral guide plate for material movement• High-pressure water spray cleaning system• Food-grade nylon brush washing system• Continuous feeding and automatic discharge• High torque gear reducer drive system• Easy maintenance and disassembly• Complete industrial 3D CAD assembly modelConstruction MaterialMajor components such as the drum, inlet, outlet, spray pipes, and protective plates are manufactured using SUS304 stainless steel, ensuring corrosion resistance and food-grade safety.Main Components• Electric motor• Cleaning drum• Water pump system• Rollers and support brackets• Rotating brushes• Spray pipe system• Feeding hopper• Water tank and valves• Drive shafts and gear reducer• Electrical control systemTypical Applications• Potato washing machines• Carrot cleaning machines• Sweet potato washing systems• Almond cleaning equipment• Agricultural product washing lines• Fruit and vegetable processing plants• Food processing production lines
