Articulated city bus toy - the long version - fully 3d printable 3D print model

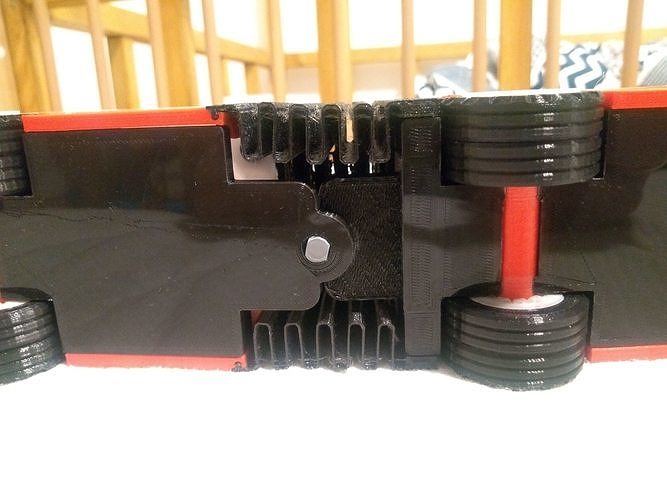

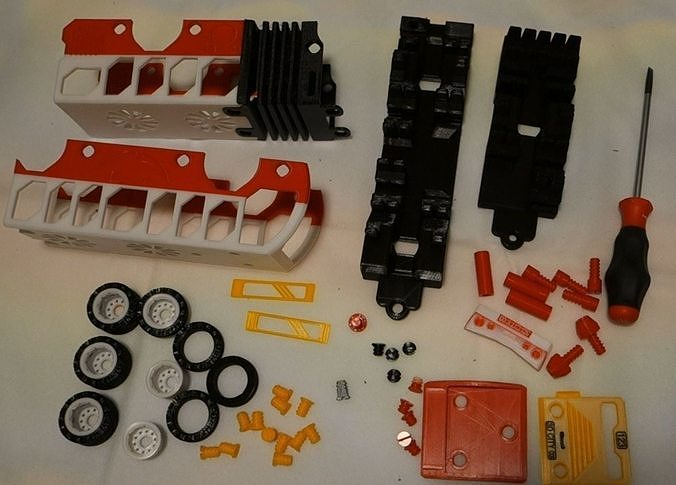

Fully printable - (almost) no support - no glue - single color 3D printerThis is an articulated city bus toy (long version, you can also find a short version/without an articulation in my library...)It is completely 3d printable.The tolerance for pieces that need to fit tightly is 0.1mm,for pieces that need to allow movement (like screws and axles) 0.3mm.Assemble video-tutorial tricky part(s) is the articulation (TPU/flexible). It should fit/connect/snap to the back body part, but this depends a lot on how your 3d printer is tunned in. My printer ist not a very good or precise one and I had to put a little effort in actually fitting these two parts, but it still worked.Printing list: Nb. STL file name rezolution support colour 1x articulation_body_flex.stl 0.16mm no black (TPU) 3x axle_die.stl 0.16mm no red 1x back_base.stl 0.16mm yes(plate) black 1x back_body.stl 0.16mm yes(plate) red/white 1x back_face.stl 0.12mm no orange/white/black 1x front_base.stl 0.16mm yes(plate) black 1x front_body.stl 0.16mm yes(plate) red/white 1x front_face.stl 0.12mm no red/white 1x front_number_cap.stl 0.12mm no red 4x rim_double.stl 0.12mm yes(plate) white 2x rim_single.stl 0.12mm yes(plate) white 5x screw_9mm.stl 0.16mm no red 4x screw_9mm.stl 0.16mm no black 0x sleeping_screw_9mm.stl 0.16mm no 12x screw_13mm.stl 0.16mm no orange 0x sleeping_screw_13mm.stl 0.16mm no 1x screw_articulation.stl 0.16mm no gray 0x sleeping_screw_articulation.stl 0.16mm no 4x screw_double_wheel.stl 0.12mm no red 2x screw_front_wheel.stl 0.12mm no red 1x sliding_doors.stl 0.12mm no orange 1x steering_wheel.stl 0.12mm no red 4x tire_bus_simple.stl 0.16mm no black (TPU) 6x tire_bus_with_outter_cut.stl 0.16mm no black (TPU) The front face, back face and two body parts where printed with changing the materials for a multi-colour effect: front and back body - change the filament at the desired hight (white - red) front face - print with lights pointing up - change the filament at 3.7mm and 4.4mm (white - red - white) back face - print with lights pointing up - change the filament at 3.6mm and 4.1mm (orange - white - black) The model was designed in FreeCAD, I can therefore offer some other file formats, or the FreeCAD project itself.Any improvement suggestions are very welcome!Happy printing!
